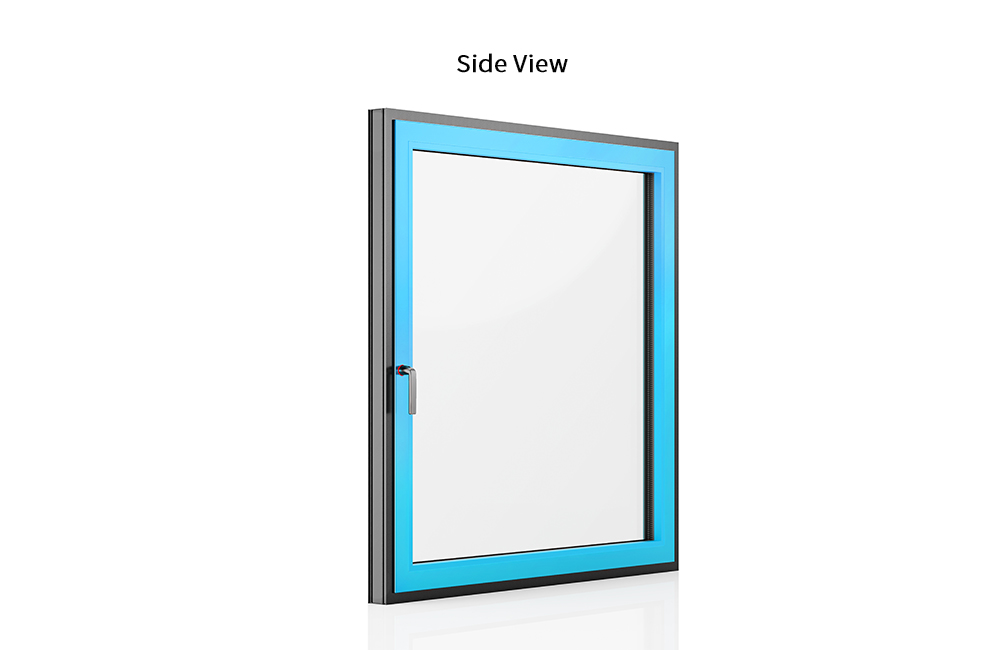

LCP91 Passive windows

Application Area:High performance window for passive houses.

Opening Type：Fix,Inside opening, Tilt&turn

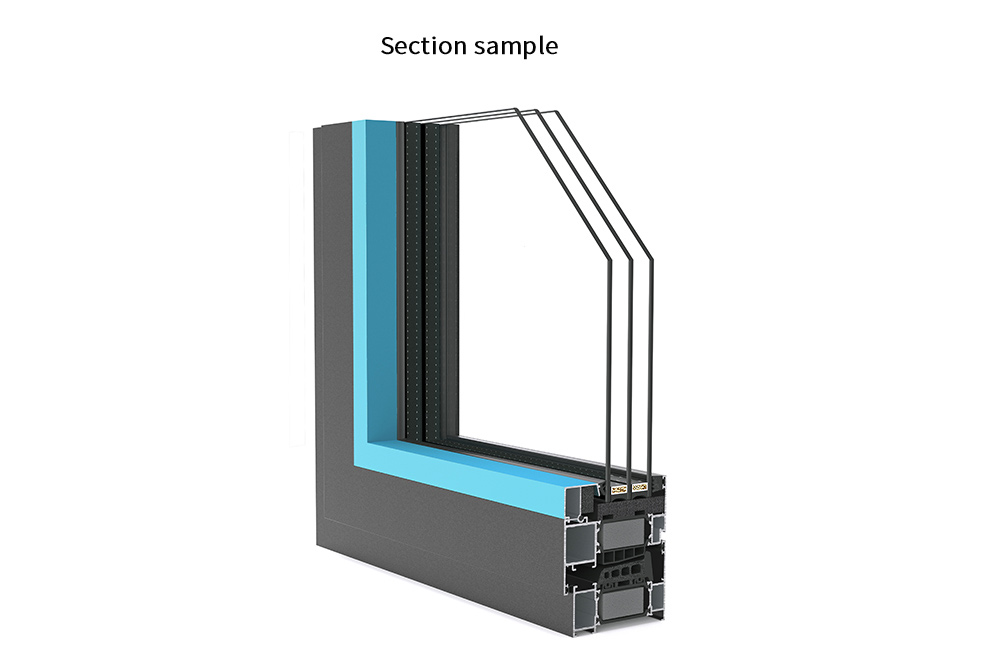

Configuration

Profile Grade :6060-T66

Profile Thickness：1.8mm

Insulation Strip ：PA66GF25 with 54mm width

Glass Specifications：

Standard Configuration ：5G+16A+5Glow-e+16A+5Glow-e

Optional  Thickness：56mm

Hardware Brand：Standard configuration： SIEGENIA

Optional Brand：Sobinco

Handle Brand ：

Standard configuration：Lan-system

Optional Brand：HOPPE handle ,FRAMMAN

Performance Parameter

Air Tightness[m3/(m2·h)]：level 8

Water Tightness(Pa)：level 6

Wind Load Resistance(Kpa)：level 9

Thermal insulating properties：level 8 （K=0.9W/（㎡·K））

Sound Insulation：level 4 （38dB）

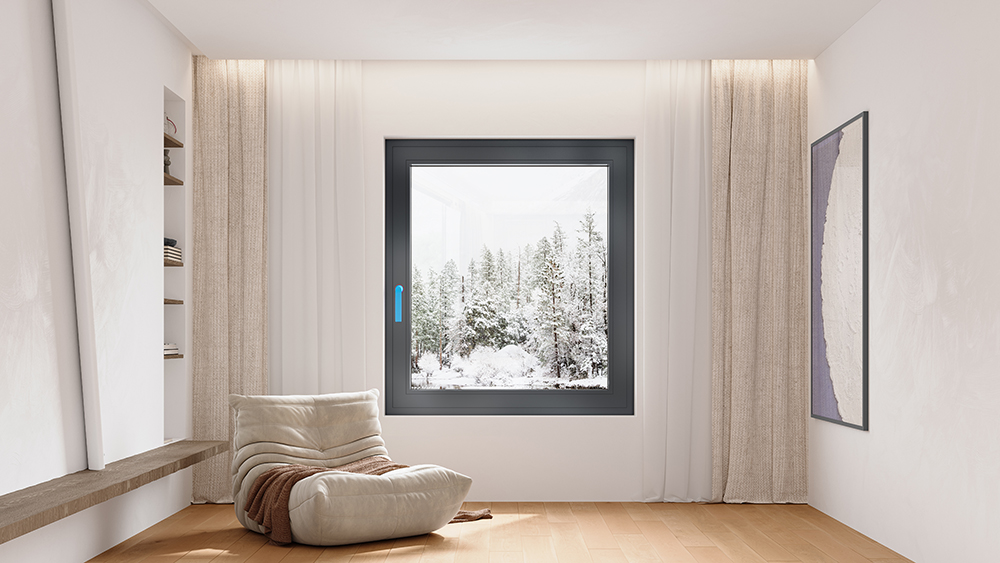

Real Case
